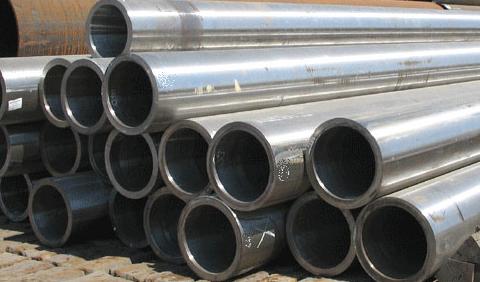

12Cr1MoVG合金管 373x16 14000元 天津產
執行標準
GB6479——化肥設備用高壓無縫鋼管
GB9948——石油裂化用無縫鋼管
ASTM A213 ——Seamless Ferritic and Austenitic Alloy-Steel Boiler, Superheater, and Heat-Exchanger Tubes
ASTM A335 ——Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service
JIS G3458 ——Alloy Steel Pipes (STPA 12/ 20/ 22/ 23/ 24/ 25/ 26)
JIS G3462 ——Alloy Steel for Boiler and Heat Exchanger Tubes (STBA12/ 13/ 20/ 22)
JIS G3467 ——Steel Tubes for Fired Heater (STF 410/STFA 12/ 22/ 23/ 24/ 25/ 26)
DIN17175-79Ⅲ——Electrical Resistance Or Induction Welded Steel Tubes for Elevated Temperature
主要生產無縫鋼管牌號
Cr5Mo (STFA25 STPA25 STBA25 T5 P5)
15CrMo (STFA22 STPA22 STBA22 T12 P12)
1.25Cr0.5Mo (STFA23 STPA23 STBA23 T11 P11)
Cr9Mo (STFA26 STPA26 STBA26 T9 P9)
12Cr1MoV
12Cr2Mo (10CrMo910 T22 P22)
10Cr9Mo1VNb T91 (P91)
12Cr2MoWVTiB (R102)
尺寸公差
查表
力學性能
|
牌號 |
常溫力學性能 |
|
標準號 |
鋼號 |
σs(MPa) |
σb(MPa) |
δs(%) |
αk(J/cm2) |
|
GB5310 |
12CrMo |
206 |
412-559 |
21 |
69u |
|
15CrMo |
235 |
441-638 |
21 |
59u |
|
12Cr1MoV |
255 |
471-638 |
21 |
59u |
|
12Cr2Mo |
280 |
450-600 |
20 |
|
|
ASTM A335 |
P1 |
207 |
379 |
22 |
|
|
P11 |
207 |
413 |
22 |
|
|
P12 |
207 |
413 |
22 |
|
|
P2 |
207 |
379 |
22 |
|
|
P22 |
207 |
413 |
22 |
|
|
P5 |
207 |
413 |
22 |
|
|
P9 |
207 |
413 |
22 |
|
|
DIN17175 |
19Mn5 |
300-310 |
510-610 |
19 |
|
|
13CrMo44 |
280-290 |
440-590 |
22 |
|
|
14MoV63 |
310-319 |
460-610 |
20 |
|
|
10CrMo910 |
269-280 |
450-600 |
|
|
|
JIS G3458 |
STPA12 |
206 |
382 |
|
|
|
STPA20 |
206 |
412 |
|
|
|
STPA22 |
206 |
412 |
|
|
|
STPA23 |
206 |
412 |
|
|
|
STPA24 |
206 |
412 |
|
|
|
STPA25 |
206 |
412 |
|
|
|
STPA26 |
206 |
412 |
|
|
|
JIS G3462 |
STBA12 |
206 |
382 |
|
|
|
STBA13 |
206 |
412 |
|
|
|
STBA22 |
206 |
412 |
|
|
|
STBA20 |
206 |
412 |
|
|
|
STBA23 |
206 |
412 |
|
|
|
